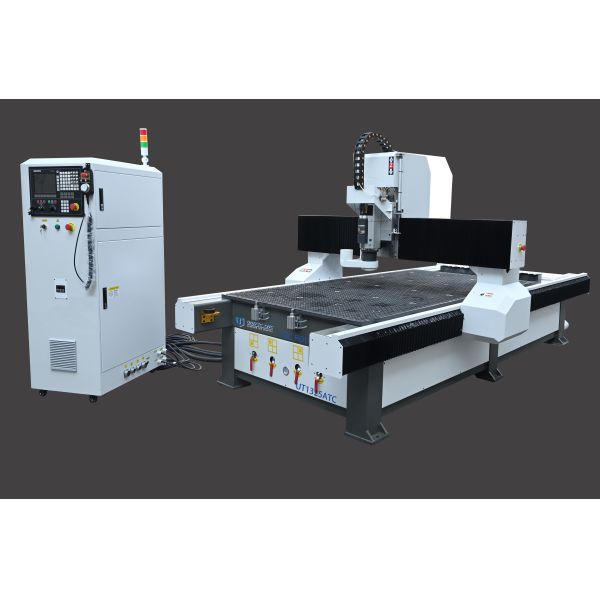

1325 4x8 ATC CNC Router for Beginners

Product Categories

Nanjing Unitec Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Name: 1325 4x8 ATC CNC Router for Beginners
Brand: Unitec
Price: 1 USD

Brand Name : Unitec

Model Number : UT1326ATC

Certification : CE

Place of Origin : China

MOQ : 1 set

Supply Ability : 100 per month

Packaging Details : Plywood+Steel pipe

working size : 1300mm X 2500mm

Spindle : 9KW Italy HSD Spindle

Motor : Taiwan Delta Servo motor

Table : Vacuum with 4 zones

Tool changer : Linear ATC

Controller : Ncstudio

Contact Now

XYZ Travel Size	1350X2900X220mm
Max Working Size	1300X2600X160mm
Table Size	1300X2600mm
Transmission Type	XY rack/Z ball screw
Guide Rail	Linear Guide
Table Type	vacuum
Vacuum Pump	7.5KW water recycle cool pump or 4.8KW air pump
Spindle Power	9KW China ATC spindle or Italy HSD ATC spindle
Tool Changer	Linear Tool Changer
Spindle Speed	24000rpm
Max Travel Speed	40000mm/min
Max Work Speed	20000mm/min
Motor	AC servo motor
Work Voltage	AC380V 50HZ
Controller System	Ncstudio or Syntec,or LNC
Processing Accuracy	±0.05mm
Repeat Positioning Accuracy	±0.01mm
File Format	G code or PLT
Overall Weight	1800KG
Overall Dimension	2000X3600X1900mm
